Is Pallet Flow Racking Right for Your Warehouse?

March 1, 2025

Pallet flow racking is an efficient storage solution for high-volume warehouses using FIFO inventory management. By utilizing gravity-driven rollers, these racks optimize space and reduce handling time. Learn how pallet flow racks enhance efficiency, improve organization, and help warehouses maximize throughput while lowering operational costs.

Efficient warehouse storage is the foundation of a productive supply chain. If your facility moves a lot of palletized inventory and relies on first-in, first-out (FIFO) rotation, pallet flow racking can be a high-impact upgrade. It’s designed to increase storage density, speed up picking and replenishment, and reduce unnecessary forklift travel, especially in fast-moving operations.

But it’s not one-size-fits-all. Below is a practical breakdown of how pallet flow works, where it performs best, and what to consider before investing.

What Is Pallet Flow Racking?

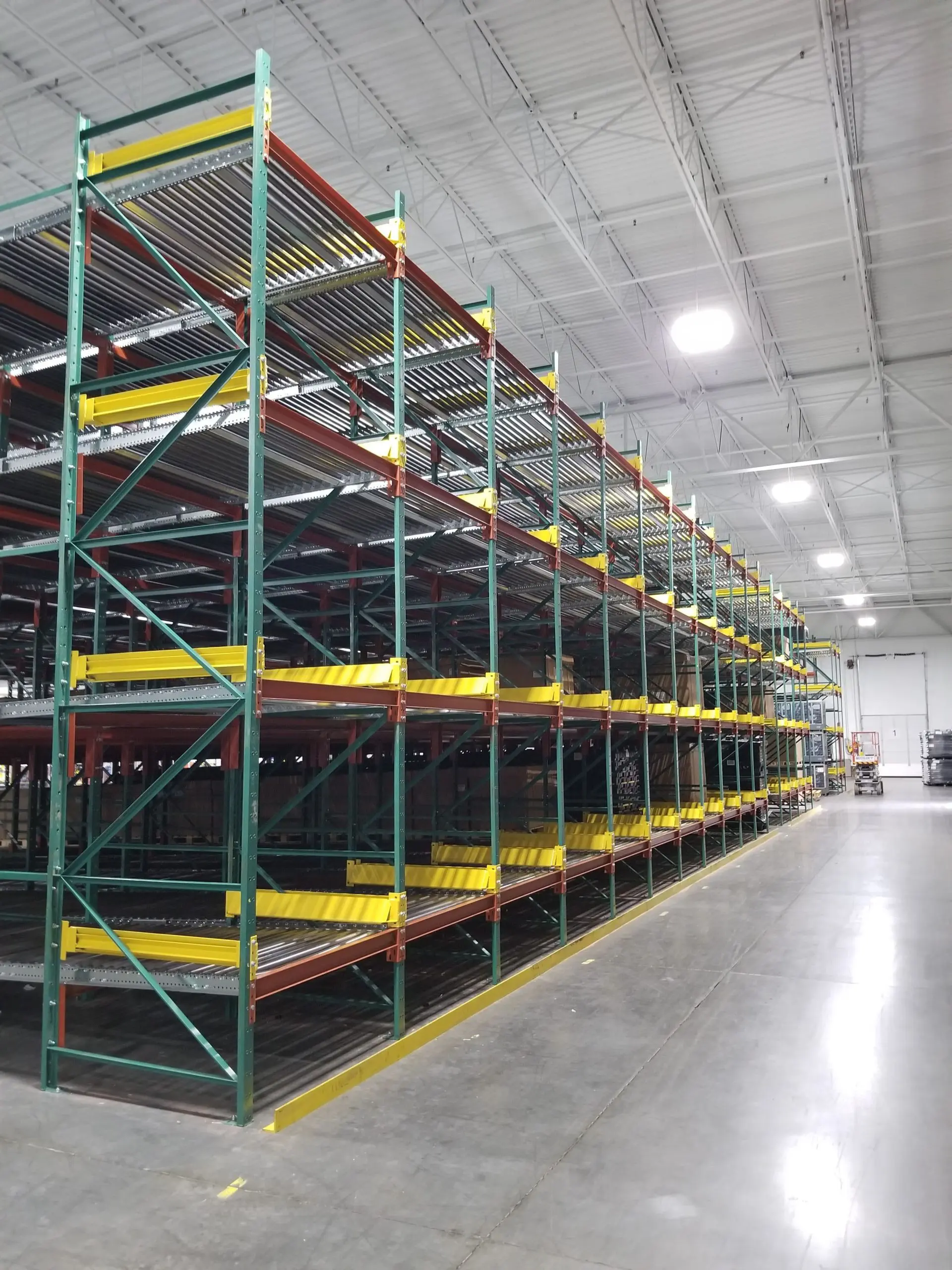

Pallet flow racking (gravity flow racking) is a high-density storage system that uses slightly inclined roller lanes to move pallets forward using gravity. Pallets are typically loaded from one side (the rear/load face) and picked from the opposite side (the front/pick face). As a pallet is removed from the pick face, the next pallet automatically advances into position.

This design supports high-throughput operations by keeping product accessible and inventory rotating with minimal manual intervention.

How Pallet Flow Racking Works (Simple Breakdown)

Each pallet lane contains rollers set at a controlled pitch so pallets move forward safely and consistently. A typical workflow looks like this:

Load product at the rear (load face).
Gravity moves pallets forward along the roller track.
Pick from the front (pick face).
Next pallet advances automatically after each pick.

Because loading and picking happen on opposite sides, pallet flow creates a cleaner, more organized movement pattern than systems that require forklifts to enter deep lanes.

Why FIFO Is a Big Deal (And When It Matters Most)

One of the strongest reasons to choose pallet flow is built-in FIFO inventory control. FIFO ensures the oldest inventory is picked first, which helps reduce waste, obsolescence, and expired stock—without requiring constant monitoring.

Pallet flow is commonly a great fit for FIFO-driven inventory such as:

Food and beverage
Pharmaceuticals or other date-sensitive goods
Cold storage / perishables
Seasonal or promotional inventory
High-volume distribution and fulfillment

Key Benefits of Pallet Flow Racking

1) Higher storage density (more pallets per square foot)

Pallet flow reduces the need for multiple pick aisles and supports deep-lane storage, allowing you to store more pallets in the same footprint compared to standard selective racking.

2) Faster picking and replenishment

Because pallets automatically advance, operators spend less time repositioning product. And since loading and picking are separated by design, you can reduce congestion and keep work moving.

3) Less forklift travel, improved workflow

Traditional layouts can force forklifts to travel deep into aisles repeatedly. Pallet flow keeps access points consistent—load from one side, pick from the other—helping reduce bottlenecks and unnecessary travel time.

4) Better organization and safer movement patterns

A pallet flow layout naturally creates defined zones (load vs. pick), which can improve traffic flow and reduce the chaos that comes from “everyone working everywhere.”

5) Lower labor and handling costs over time

When gravity handles the “movement inside the lane,” forklifts and operators can focus on loading and retrieval rather than repeated repositioning. That often translates into measurable labor efficiency gains.

Where Pallet Flow Performs Best

Pallet flow racking tends to deliver the best ROI in high-turnover environments where you can dedicate lanes to consistent SKUs and you benefit from FIFO. Common use cases include:

Distribution centers
Grocery / retail fulfillment
Beverage warehouses
Cold storage facilities
Manufacturing supply areas / staging

Tip: Pallet flow works best when each lane is assigned to a single SKU (or highly consistent pallet profile), which keeps flow predictable and inventory tracking simple.

Cost Considerations (Upfront vs. Long-Term ROI)

Pallet flow typically costs more upfront than selective pallet racking because of additional components (roller tracks, braking/control elements, reinforced structure, and more detailed installation).

A practical way to evaluate ROI is to weigh:

Upfront cost (equipment + installation)
Maintenance needs (keeping rollers and control components functioning properly)
Labor savings (reduced forklift travel and handling)
Improved inventory rotation (less product loss for perishables/date-sensitive goods)
Throughput gains (more pallets moved per hour)

For operations with fast inventory turns and real FIFO pressure, the long-term benefits often outweigh the initial investment.

When Pallet Flow Racking Isn’t the Best Fit

Even though pallet flow is highly efficient, it’s not ideal in every environment. You may want to consider other systems (or a hybrid design) if:

You need high SKU flexibility and can’t dedicate lanes (many SKUs, small quantities each)
Your operation doesn’t follow FIFO
Inventory turnover is low (you won’t realize the throughput and labor benefits)
Your pallet loads are frequently inconsistent in a way that makes flow difficult to standardize

Many warehouses get the best result from a hybrid layout—using pallet flow for high-volume, FIFO SKUs and selective/pushback/other racking for the rest.
